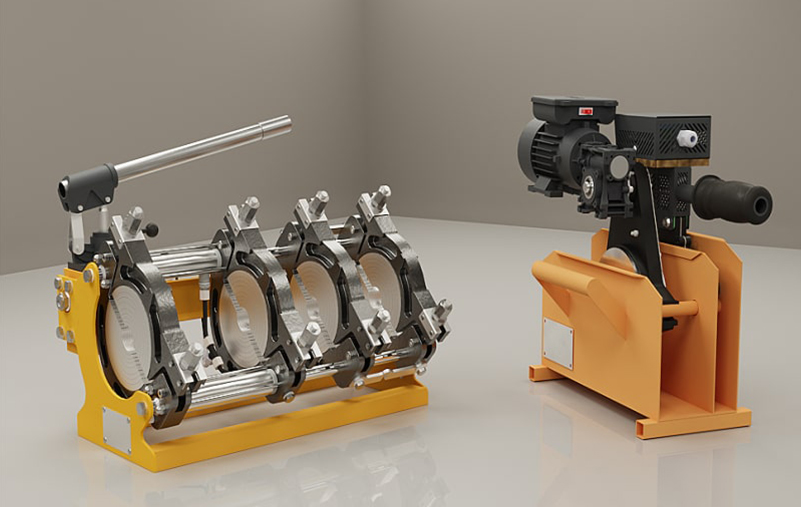

160 Plastic Pipe Manual Hydraulic
Butt Welding Machine

• Used for welding PE – PP – PVDF pipes and fittings with diameters of 40 – 50 – 63 – 75 – 90 – 110 – 125 – 140 – 160 mm up to 32 Bar.
• Provides the shortest operational setup, powerful, easy, and fast welding capability in accordance with ISO 12176 – 1 international standards.
• Lightweight structure enables easy usage.
• Designed with a maximum working pressure of 150 Bar.
• Suitable for operation in ambient temperatures from -10°C to +40°C.

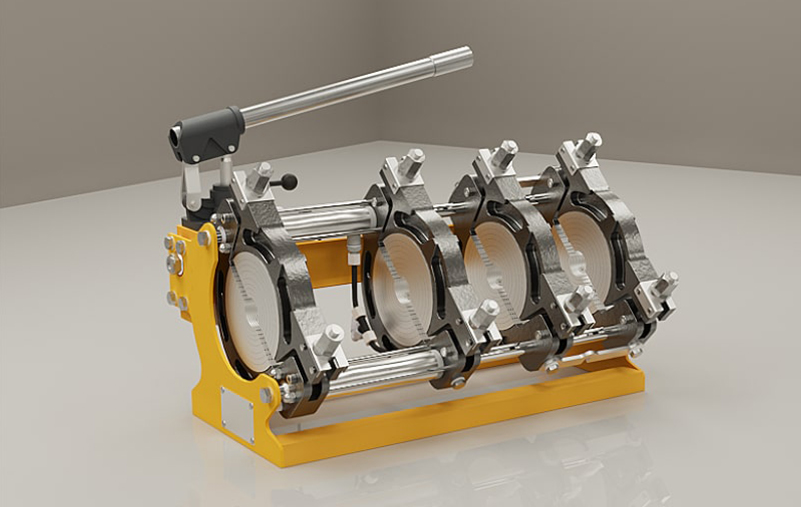

Manual Hydraulic Butt Welding Machine Body

The main body supports the plastic pipes to be welded with two movable and two fixed clamps, ensuring their fixation and centering.Hydraulic pressure is applied to the system.Two pistons on the carrier shaft direct the force to move the movable clamps forward and backward, allowing the necessary movement for the welding process to take place.

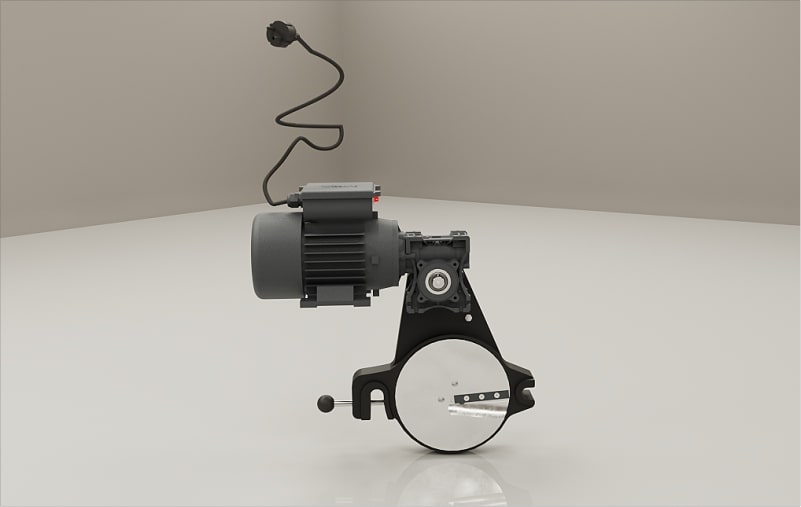

Manual Hydraulic Butt Welding Machine Trimmer

The trimmer is equipped with two rotating blades on the right and left side, which prepare the fixed and centered pipes mounted on the main body by cleaning the butt surface before the heating process and making it ready for welding.The rotating motion of the trimmer is powered by a motor and reduction gear.The MHW160 Butt Welding Machine Trimmer unit creates burr-free and parallel pipe surfaces.

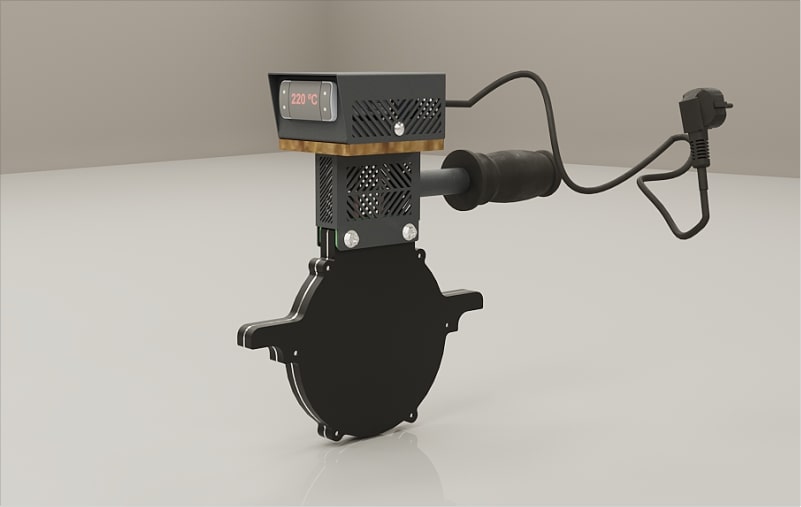

Manual Hydraulic Butt Welding Machine Heater

The heater element heats the pipe butt surfaces, which have been finished to the desired roughness by the trimmer, preparing them for the joining process.The temperature setting of the heater is done using the digital temperature control thermostat on the heater plate.

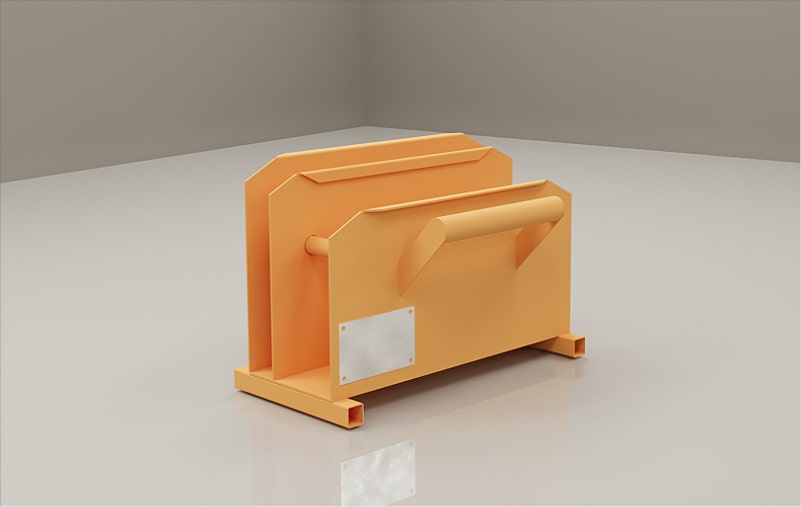

Manual Hydraulic Butt Welding Machine Protective Casing

The protective casing prevents heat loss from the heater and provides protection against external impacts (such as shocks, water, etc.) to the trimmer and heater.

Technical Specifications
Welding Range	Ø 40 mm – Ø 160 mm (Ø40 mm, Ø50 mm, Ø63 mm, Ø75 mm, Ø90 mm, Ø110 mm, Ø125 mm, Ø140 mm, Ø160 mm)
Pipe Types to Weld	PE – PP – PVDF
Pipe Max. Pressure	PN32
Heater Electric Power	220 V – 1.5 kW
Trimmer Electric Power	220 V – 0.37 kW
Electric System	Single Phase
Total Electricity Consumption	1.87 kW
Operating Pressure	150 Bar
Required Generator Power	4 kVA
Working Temperature	(-10 C° ~ +40 C°)
Hydraulic Oil	Hydraulic 46 / 1 lt
Content
User Manual	1 pcs
Main Body	1 pcs
Trimmer	1 pcs
Heater	1 pcs
Protective Casing	1 pcs
Stuffer	48 pcs
Tool Bag	1 pcs
Packaging Details
Type of Package	Wooden Case
Number of Packages	1 pack
Dimensions	0.70 x 0.72 x 0.68
Total Volume	0.342 m3
Total Net Weight	46 kg
Total Gross Weight	66 kg
