1000 Plastic Pipe Hydraulic
Butt Fusion Machine

Here is the translation of the provided text:

• Used for welding PE – PP – PVDF pipes and fittings in diameters of 630 – 710 – 800 – 900 – 1000 mm up to 32 Bar.
• Provides an operationally shortest setup with strong, easy, and quick welding capabilities in accordance with ISO 12176 – 1 international standards.
• Its lightweight structure allows for easy use.
• Maximum working pressure is designed as 200 Bar.
• Suitable for operation in ambient temperatures between -10°C ~ +40°C.

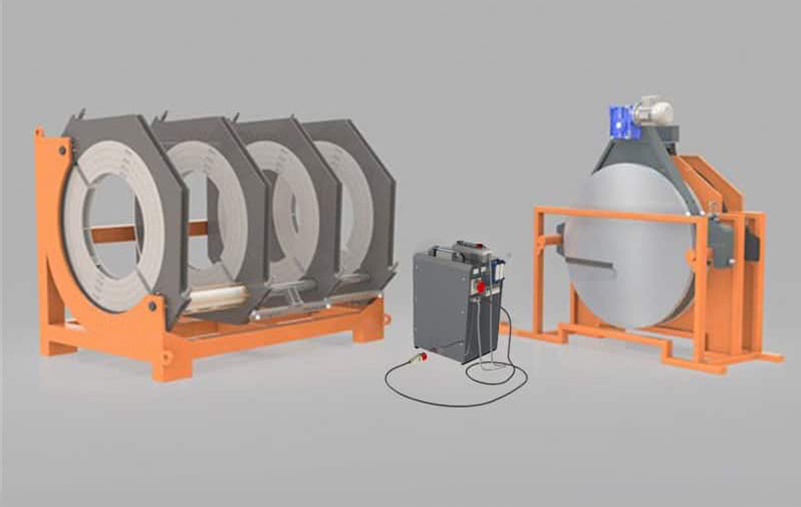

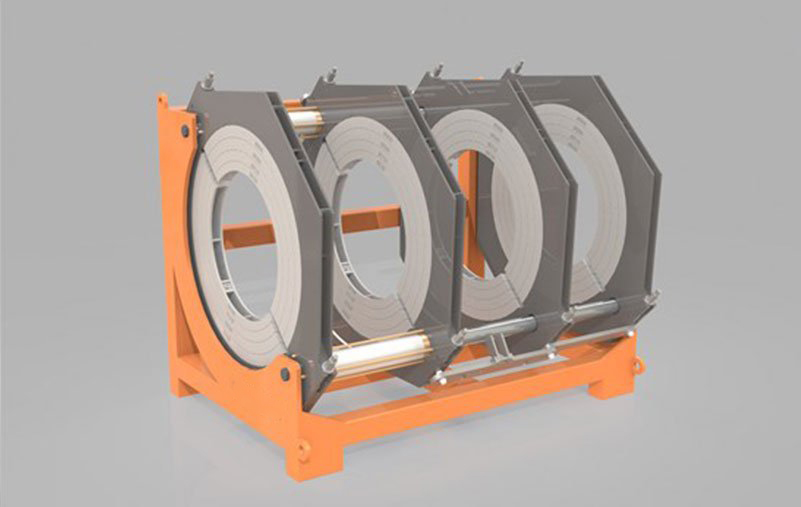

W1000 Butt Fusion Machine Body

The main body provides support to the plastic pipes to be welded with two movable and two fixed clamps on it, ensuring they are fixed and centered.Hydraulic pressure force is applied to the system. With two pistons on the carrying shaft, this force directs the movable clamps forward and backward, providing the necessary movement for the welding process to take place.

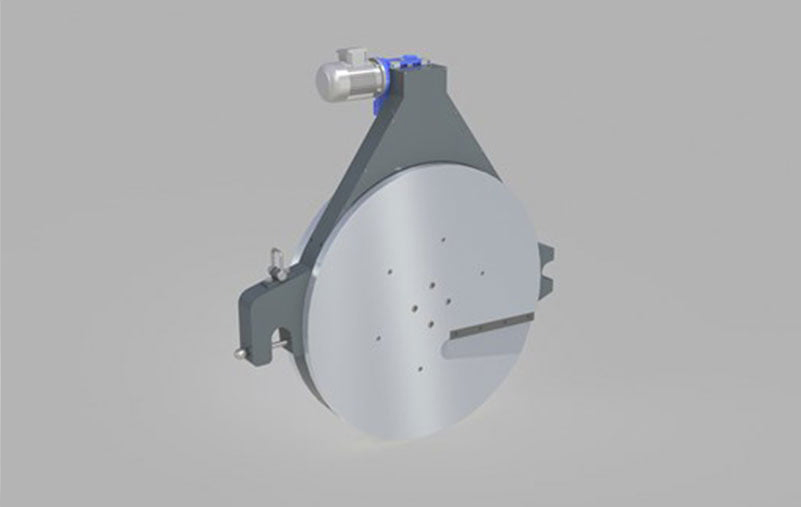

W1000 Butt Fusion Machine Trimmer

The trimmer element of the butt fusion machine performs the cleaning of the pipe ends before heating, making them ready for the heating process. The pipes are fixed and centered on the main body.The trimmer’s rotating motion is provided by the motor and reducer group attached to it.The W1000 Butt Fusion Machine trimmer unit creates smooth, parallel pipe surfaces without burrs.

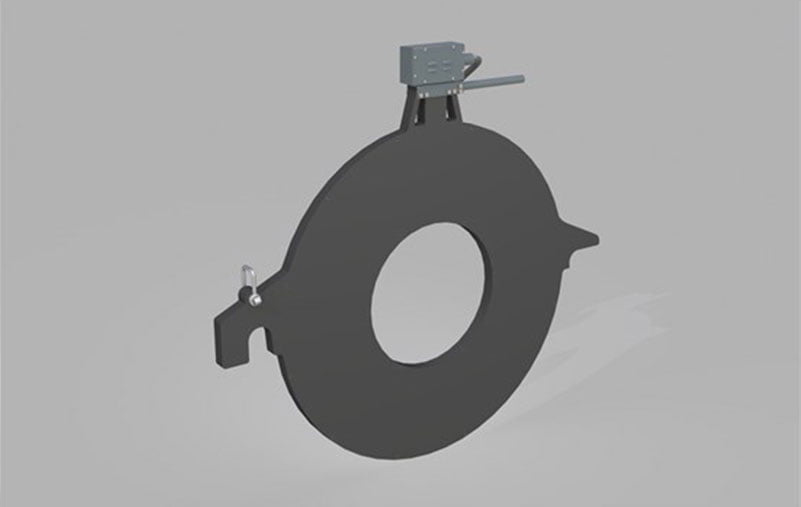

W1000 Butt Fusion Machine Heater

The heater element of the butt fusion machine prepares the pipe end surfaces, which have been made smooth by the trimmer, for welding by heating them with a heating plate.The temperature setting of the heater is made via the digital thermostat on the heating plate.

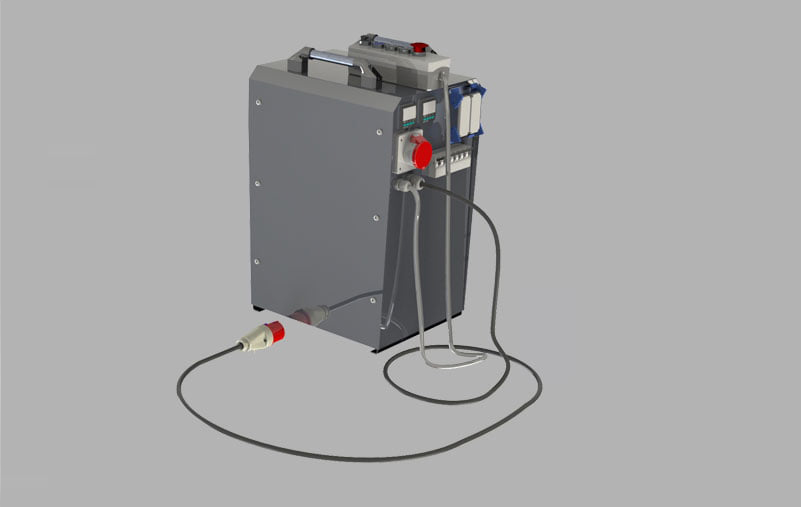

W1000 Butt Fusion Machine Hydraulic and Electric Control Unit

The electric and hydraulic control unit provides the necessary electricity to the heater and trimmer and hydraulic pressure to the main machine.The control unit is operated via a remote control. The remote control has four buttons and a switch. The buttons control the forward and backward movement of the movable clamps, while the switch operates the trimmer.

W1000 Butt Fusion Machine Protective Casing

The protective casing and support box prevent heat loss from the heater and protect the trimmer and heater from external impacts (such as shocks, water, etc.).

Technical Specifications
Welding Range	Ø 630 mm – Ø 1000 mm (Ø630 mm, Ø710 mm, Ø800 mm, Ø900 mm, Ø1000 mm)
Pipe Types to Weld	PE – PP – PVDF
Pipe Max. Pressure	PN32
Heater Electric Power	380 V – 15 kW
Trimmer Electric Power	380 V – 3 kW
Power of Hydraulic Unit	380 V – 2.2 kW
Electric System	Triple Phase
Total Electricity Consumption	20.2 kW
Operating Pressure	200 Bar
Required Generator Power	30 kVA
Working Temperature	(-10°C ~ +40°C)
Hydraulic Oil	Hydraulic 46 / 6 lt
Content
User Manual	1 pcs
Main Body	1 pcs
Trimmer	1 pcs
Heater	1 pcs
Protective Casing	1 pcs
Stuffer	32 pcs
Tool Bag	1 pcs
Packaging Details
Type of Package	Wooden Case
Number of Packages	2 packs
Dimensions	1.55 x 1.95 x 1.76, 0.75 x 2.05 x 1.89
Total Volume	8.24 m³
Total Net Weight	1720 kg
Total Gross Weight	1981 kg
