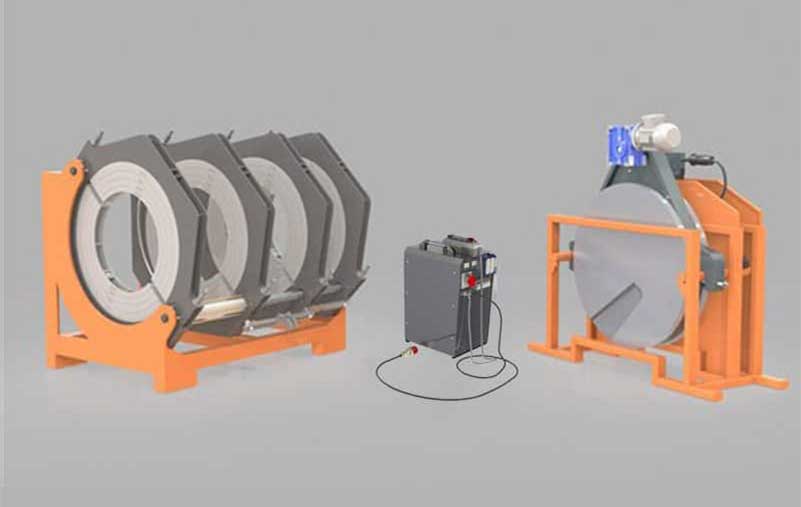

800 Plastic Pipe Hydraulic
Butt Welding Machine

• Used for welding PE – PP – PVDF pipes and fittings with diameters of 500 – 560 – 630 – 710 – 800 mm, up to 32 Bar pressure.
• Provides strong, easy, and fast welding with the shortest operational setup time, compliant with ISO 12176 – 1 international standards.
• Lightweight design ensures ease of use.
• Designed for a maximum operating pressure of 150 Bar.
• Suitable for operation in ambient temperatures ranging from -10°C to +40°C.

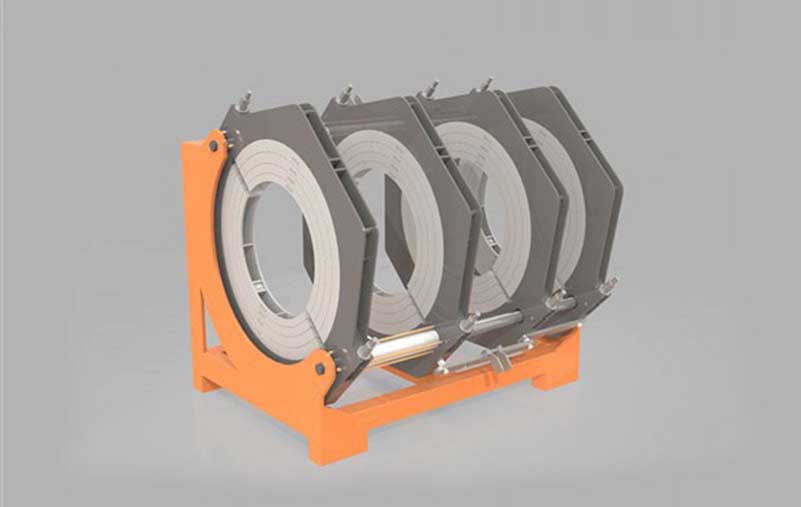

W800 Butt Welding Machine Body

The main body, equipped with two movable and two fixed clamps, supports, secures, and centers the plastic pipes to be welded.Hydraulic pressure is applied to the system. Two pistons on the carrier shaft move the clamps forward and backward, providing the motion necessary for the welding process.

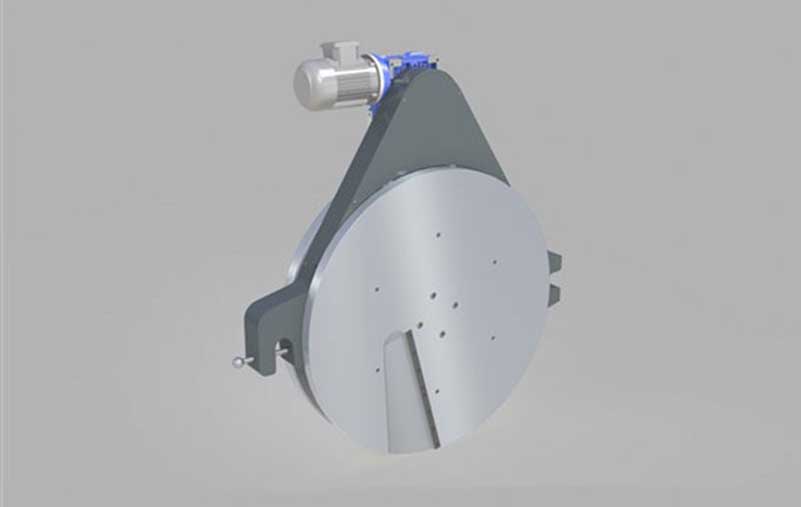

W800 Butt Welding Machine Trimmer

With two rotary wings on the right and left sides and cutting blades on these wings, this element cleans and prepares the pipe ends, which are fixed and centered on the main body, before heating.The trimmer’s rotary motion is powered by a motor and gearbox assembly.The W800 Butt Welding Machine trimmer unit produces burr-free and parallel pipe surfaces.

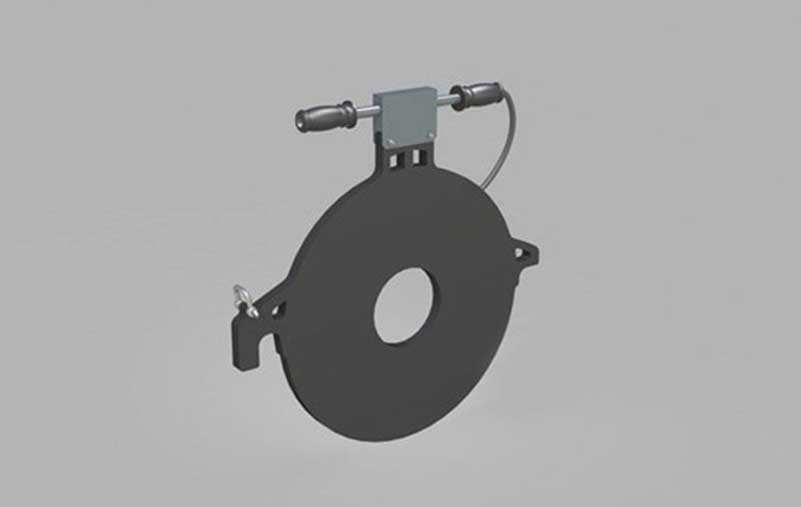

W800 Butt Welding Machine Heater

Heats the pipe ends, which are prepared with the desired roughness by trimming, using a heating plate to prepare them for joining.The heater temperature is controlled with a digital thermostat located on the heating plate.

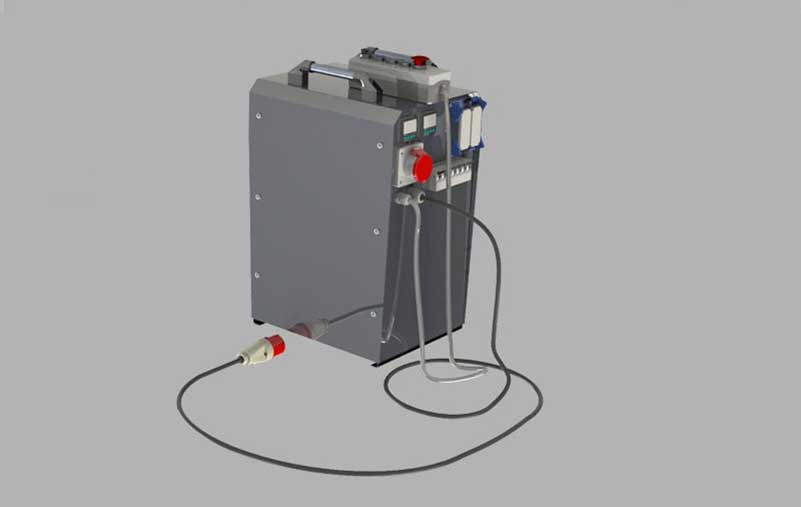

W800 Butt Welding Machine Hydraulic and Electrical Control Unit

The electrical and hydraulic control unit supplies the electricity required to operate the heater and trimmer, and the hydraulic pressure to the main machine.The control unit is operated via a handheld remote. The remote has four buttons and a switch. The buttons move the clamps forward and backward, while the switch operates the trimmer.

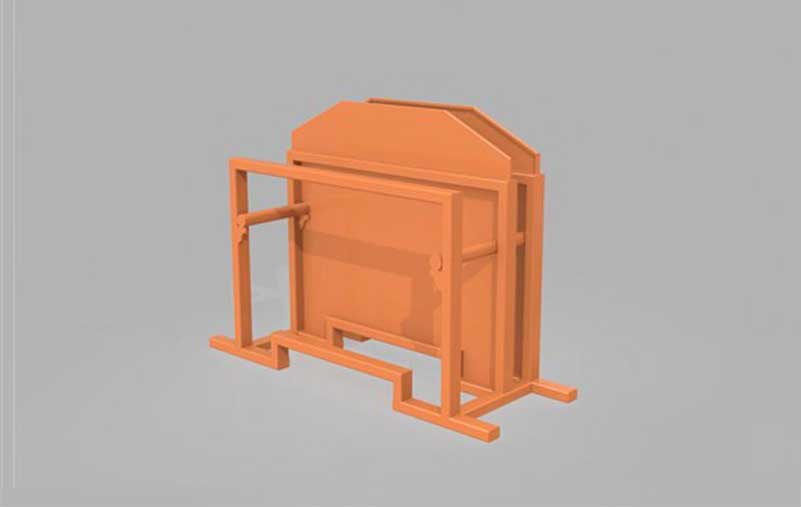

W800 Butt Welding Machine Protective Case

The protective and support case prevents heat loss from the heater and protects the trimmer and heater from external impacts such as shocks and water.

Technical Specifications
Welding Range	Ø 500 mm – Ø 800 mm (Ø500 mm, Ø560 mm, Ø630 mm, Ø710 mm, Ø800 mm)
Pipe Types to Weld	PE – PP – PVDF
Pipe Max. Pressure	PN32
Heater Electric Power	380 V – 10 kW
Trimmer Electric Power	380 V – 2.2 kW
Power of Hydraulic Unit	380 V – 1.1 kW
Electric System	Three Phase
Total Electricity Consumption	12.95 kW
Operating Pressure	150 Bar
Required Generator Power	20 kVA
Working Temperature	(-10°C ~ +40°C)
Hydraulic Oil	Hydraulic 46 / 4 liters
Contents
User Manual	1 pcs
Main Body	1 pcs
Trimmer	1 pcs
Heater	1 pcs
Protective Casing	1 pcs
Stuffer	32 pcs
Tool Bag	1 pcs
Packaging Details
Type of Package	Wooden Case
Number of Packages	2 packs
Dimensions	1.37 x 1.46 x 1.47 / 0.75 x 1.50 x 1.63 meters
Total Volume	4.77 m³
Total Net Weight	993 kg
Total Gross Weight	1,185 kg
