2500 Plastic Pipe Hydraulic Butt Welding Machine

• Used for welding PE – PP – PVDF pipes and fittings with diameters of 1800 – 2000 – 2200 – 2400 – 2500 mm up to 10 Bar.
• Provides strong, easy, and rapid welding with the shortest operational setup in accordance with ISO 12176 – 1 international standards.
• Offers easy usability thanks to its lightweight design.
• Designed with a maximum operating pressure of 200 Bar.
• Suitable for operation in ambient temperatures between -10°C and +40°C.

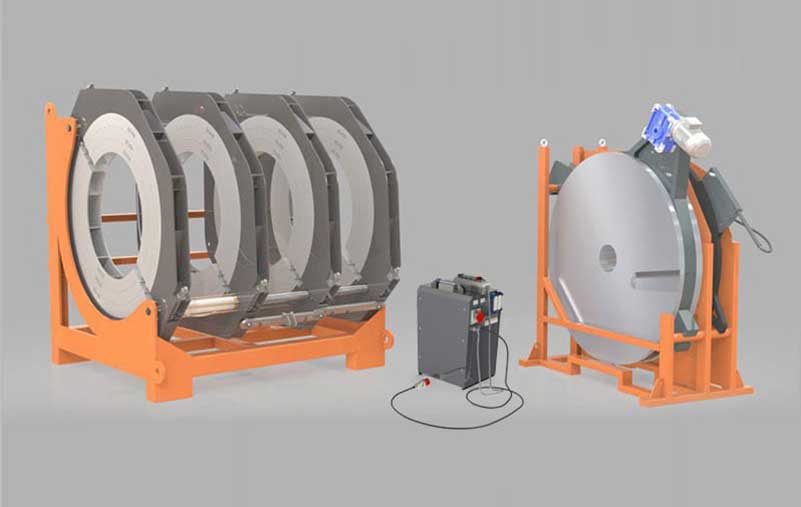

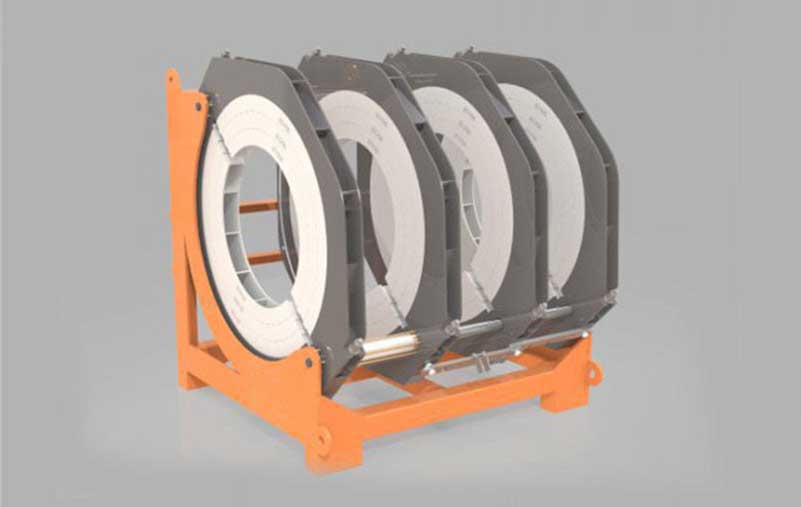

W2500 Butt Fusion Machine Body

The main body provides support for the plastic pipes to be welded with two movable and two fixed clamps, ensuring fixation and centering.Hydraulic pressure force is applied to the system. Two pistons on the carrier shaft direct this force to move the movable clamps forward and backward, enabling the welding process.

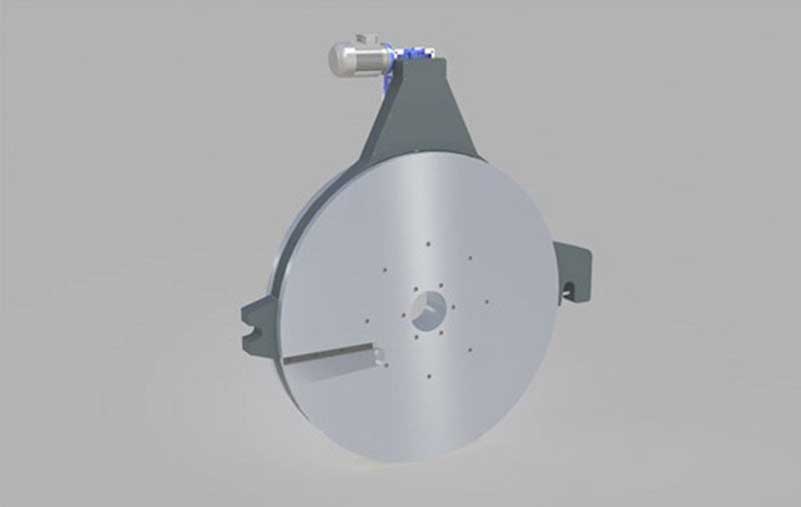

W2500 Butt Fusion Machine Trimmer

Equipped with two rotating wings on the right and left, each fitted with cutting blades, this component cleans the pipe ends fixed and centered on the main body before heating, preparing them for welding.The trimmer’s rotational movement is powered by the motor and gearbox assembly.The W2500 Butt Fusion Machine trimmer unit produces burr-free and parallel pipe surfaces.

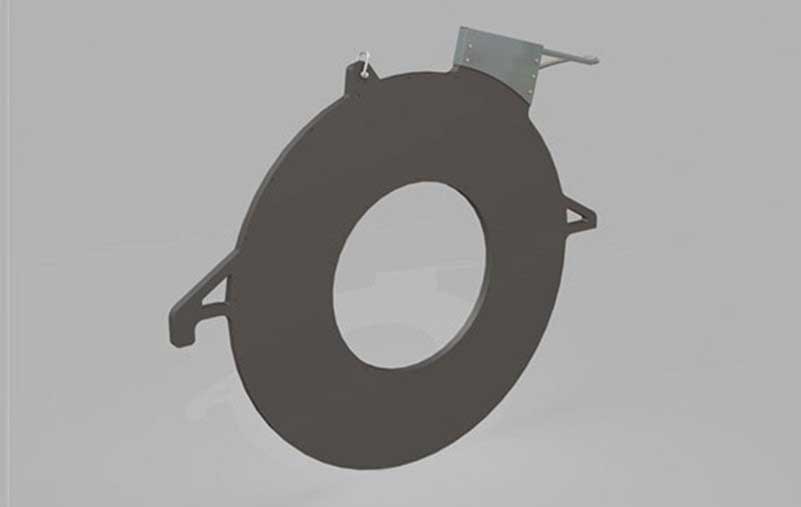

W2500 Butt Fusion Machine Heater

This component heats the pipe end surfaces, prepared by trimming, with a heating plate, making them ready for the fusion welding process.Temperature adjustment of the heater is performed with a digital temperature thermostat located on the heating plate.

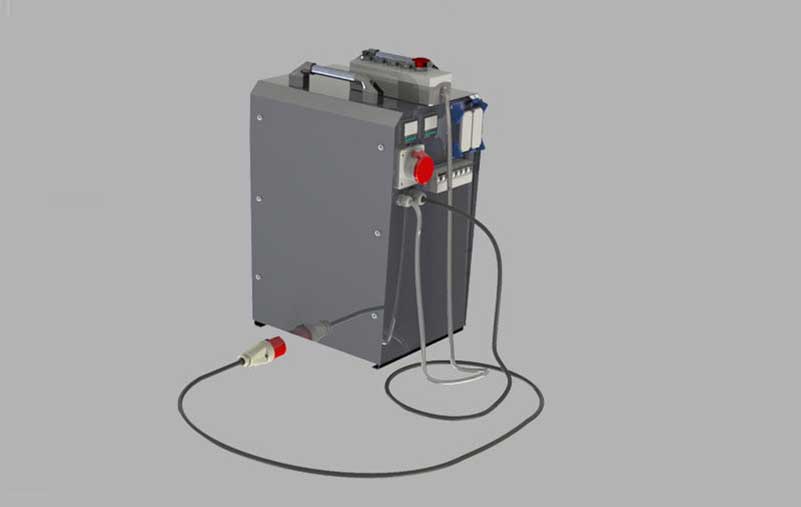

W2500 Hydraulic and Electric Control Unit

The electric and hydraulic control unit supplies the necessary electricity to the heater and trimmer, and transmits hydraulic pressure to the main machine.The control unit is operated via a handheld remote control. The remote has four buttons and one switch. Buttons move the movable clamps forward and backward, and the switch activates the trimmer.

Technical Specifications
Welding Range	Ø 2000 mm – Ø 2500 mm (Ø1800 mm, Ø2000 mm, Ø2200 mm, Ø2400 mm, Ø2500 mm)
Pipe Types to Weld	PE – PP – PVDF
Pipe Max. Pressure	PN10
Heater Electric Power	380 V – 80 kW
Trimmer Electric Power	380 V – 11 kW
Power of Hydraulic Unit	380 V – 5.5 kW
Electric System	Three-phase
Total Electricity Consumption	96.5 kW
Operating Pressure	270 Bar
Required Generator Power	120 kVA
Working Temperature	(-10°C ~ +40°C)
Hydraulic Oil	Hydraulic 46 / 6 lt
Content
User Manual	1 pcs
Main Body	1 pcs
Trimmer	1 pcs
Heater	1 pcs
Protective Casing	1 pcs
Stuffer	32 pcs
Tool Bag	1 pcs
Packaging Details
Type of Package	Open-Stretch
Number of Packages	3 packs
Dimensions	2.50 x 3.50 x 3.50, 1.70 x 3.40 x 3.30
Total Volume	49.69 m³
Total Net Weight	9,500 kg
Total Gross Weight	9,600 kg
