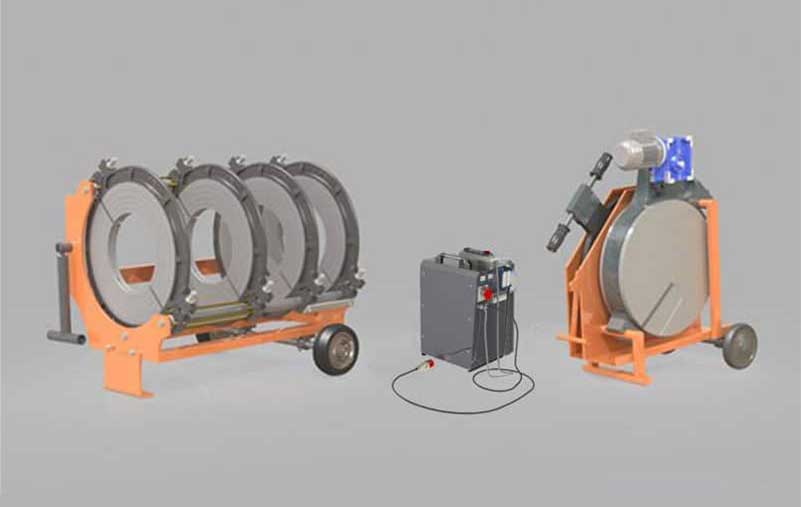

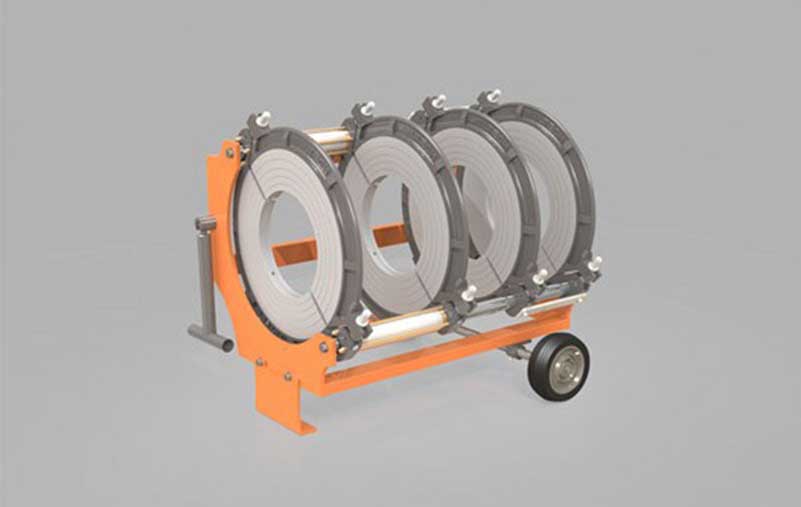

It supports the plastic pipes to be welded by fixing and centering them with two movable and two fixed clamps located on the main body.
Hydraulic pressure force is applied to the system.
This force is directed forward and backward to the movable clamps by two pistons on the carrier shaft to provide the necessary movement for the welding process.

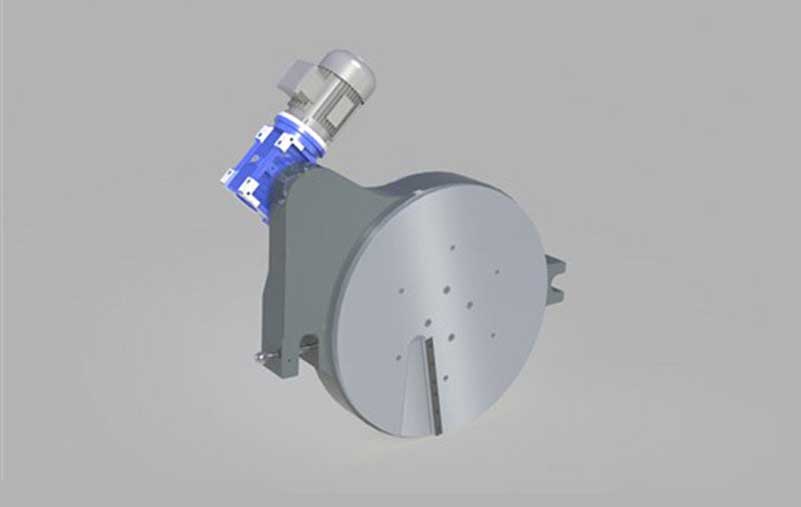

It is the component of the butt welding machine that cleans the pipe ends, which are fixed and centered on the main body, before heating, by using two rotating wings and cutting blades on them, preparing them for heating.
The rotational movement of the trimmer is provided by the motor and reducer group on it.
The W630 butt welding machine’s trimming unit creates burr-free and parallel pipe surfaces.

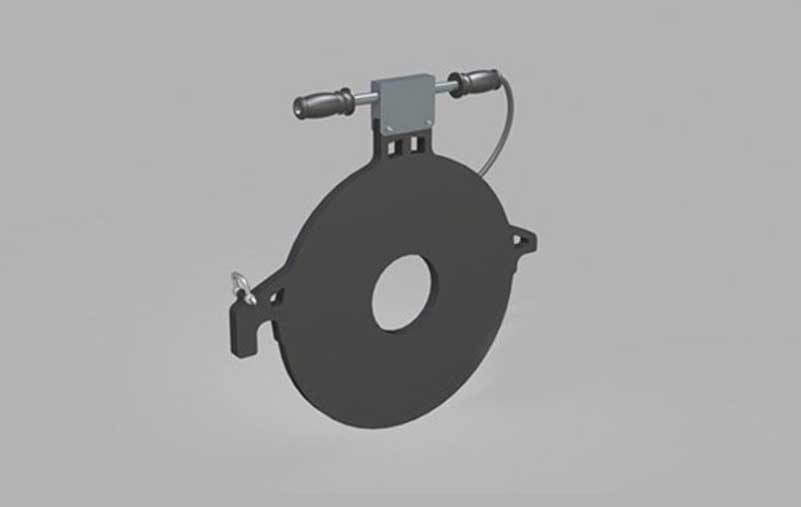

It is the component of the butt welding machine that heats the pipe end surfaces, which have been prepared to the desired roughness by trimming, using a heating plate to prepare for fusion.
The heater temperature is controlled by a digital temperature thermostat located on the heating plate.

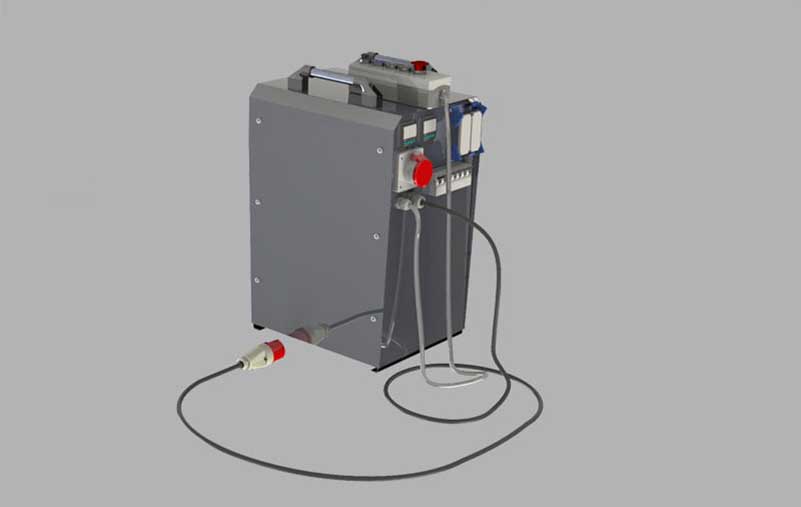

The electric and hydraulic control unit supplies the necessary electricity to the heater and trimmer and hydraulic pressure to the main machine; it is operated via a remote control.
The remote control has four buttons and one switch. The buttons move the movable clamps forward and backward, and the switch operates the trimmer.
The protective and support casing prevents heat loss from the heater and protects the trimmer and heater from external impacts (such as shocks, water, etc.).
| Technical Specifications | |
|---|---|
| Welding Range | Ø 315 mm – Ø 630 mm (Ø315 mm, Ø355 mm, Ø400 mm, Ø450 mm, Ø500 mm, Ø560 mm, Ø630 mm) |
| Pipe Types to Weld | PE – PP – PVDF |
| Pipe Max. Pressure | PN32 |
| Heater Electric Power | 380 V – 7.5 kW |
| Trimmer Electric Power | 380 V – 1.5 kW |
| Power of Hydraulic Unit | 380 V – 1.1 kW |
| Electric System | Three Phase |
| Total Electricity Consumption | 9.75 kW |
| Operating Pressure | 150 Bar |
| Required Generator Power | 15 kVA |
| Working Temperature | (-10°C ~ +40°C) |
| Hydraulic Oil | Hydraulic 46 / 4 liters |
| Content | |
| User Manual | 1 pc |
| Main Body | 1 pc |
