The protective and support casing prevents heat loss from the heater and protects the trimmer and heater against external impacts (shock, water, etc.).
250 Plastic Pipe Hydraulic
Butt Welding Machine
BUTT WELDING MACHINES
- Used for welding PE – PP – PVDF pipes and fittings with diameters of 63 – 75 – 90 – 110 – 125 – 140 – 160 – 180 – 200 – 225 – 250 mm up to 32 Bar.
- Provides strong, easy, and rapid welding with the shortest operational setup in accordance with ISO 12176 – 1 international standards.
- Offers easy usability thanks to its lightweight design.
- Designed with a maximum operating pressure of 150 Bar.
- Suitable for operation in ambient temperatures between -10°C and +40°C.

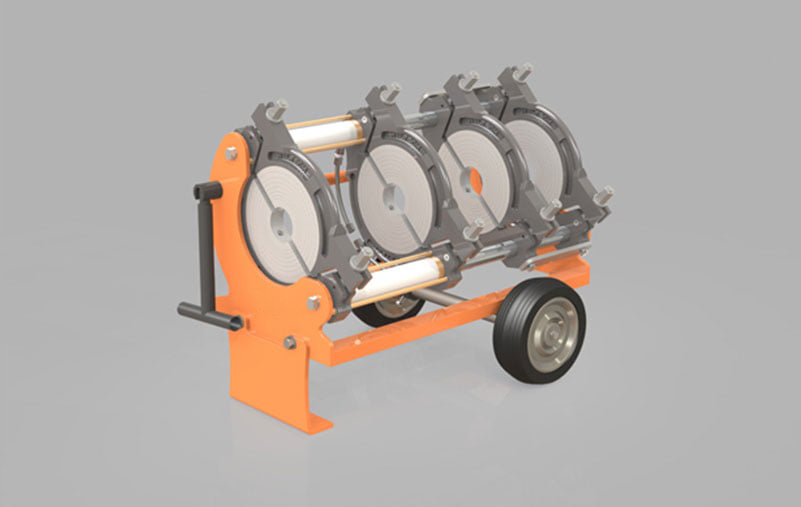

W250 Butt Fusion Machine Body
The main body supports the plastic pipes to be welded with two movable and two fixed clamps, ensuring fixation and centering.Hydraulic pressure is applied to the system. Two pistons on the carrier shaft move the movable clamps forward and backward, enabling the welding operation. W250 Butt Fusion Machine Trimmer

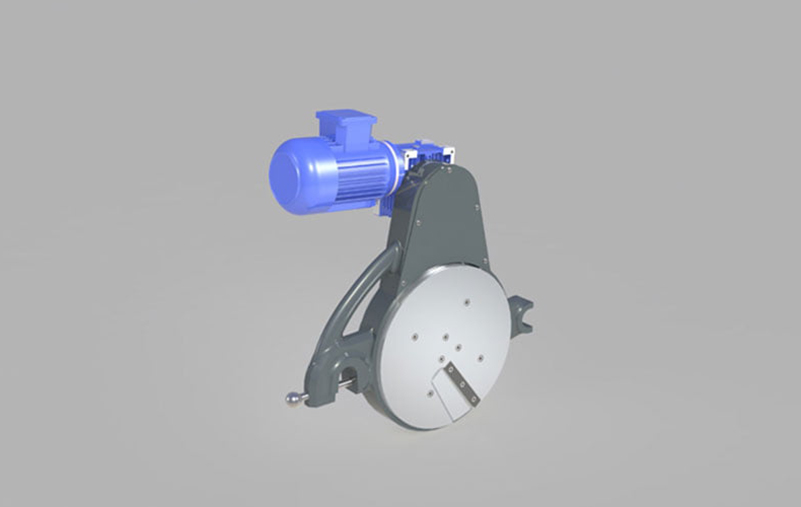

With two rotating wings on each side equipped with cutting blades, this unit cleans and prepares the pipe ends fixed and centered on the main body for heating before welding.The trimmer’s rotation is powered by a motor and gearbox assembly.
The W250 trimmer unit produces burr-free, parallel pipe surfaces. W250 Butt Fusion Machine Heater

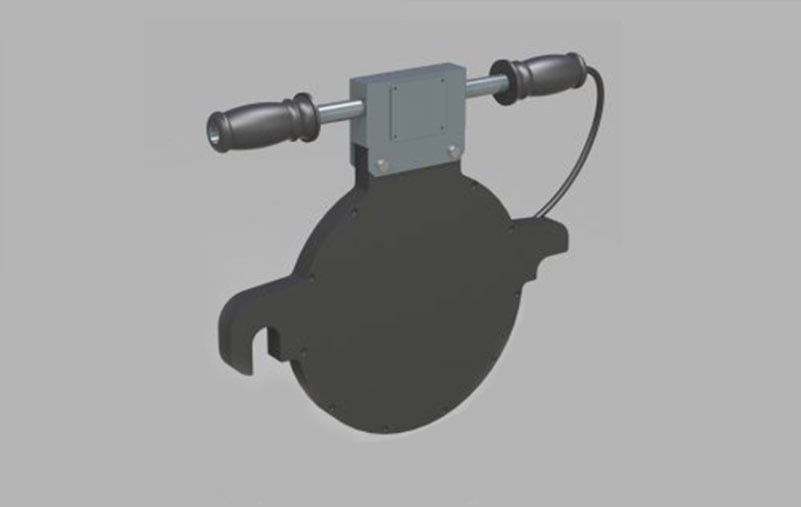

Heats the pipe ends prepared by trimming with a heating plate to prepare them for fusion welding.The heater’s temperature is controlled digitally via a thermostat on the heating plate. W250 Hydraulic and Electric Control Unit
The electric and hydraulic control unit supplies electricity to the heater and trimmer and hydraulic pressure to the main machine; it is operated via a handheld remote control.The remote has four buttons and one switch. The buttons move the clamps forward and backward, and the switch activates the trimmer.

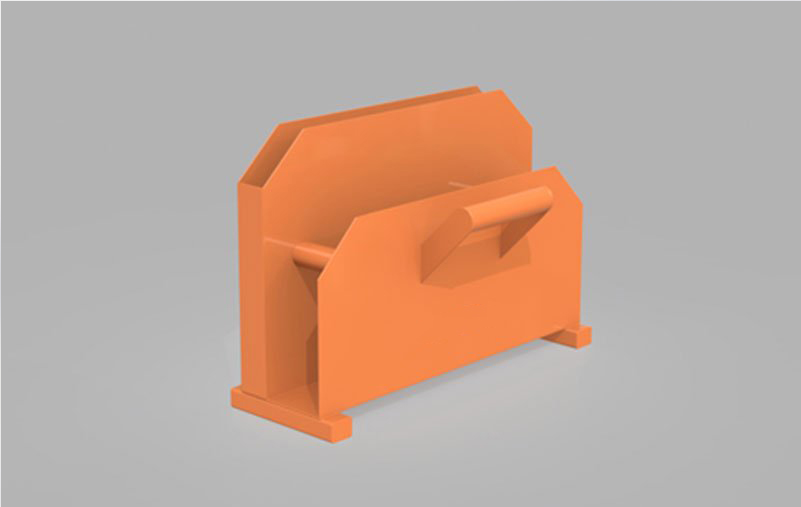

W250 Protective and Support Casing
| Technical Specifications | |
|---|---|
| Welding Range | Ø 63 mm – Ø 250 mm (Ø63 mm, Ø75 mm, Ø90 mm, Ø110 mm, Ø125 mm, Ø140 mm, Ø160 mm, Ø180 mm, Ø200 mm, Ø225 mm, Ø250 mm) |
| Pipe Types to Weld | PE – PP – PVDF |
| Pipe Max. Pressure | PN32 |
| Heater Electric Power | 220 V – 2.8 kW |
| Trimmer Electric Power | 220 V – 0.75 kW |
| Power of Hydraulic Unit | 220 V – 0.55 kW |
| Electric System | Single Phase |
| Total Electricity Consumption | 4.1 kW |
| Operating Pressure | 150 Bar |
| Required Generator Power | 6 kVA |
| Working Temperature | (-40°C ~ +40°C) |
| Hydraulic Oil | Hydraulic 46 / 4 liters |
| Content | |
| User Manual | 1 pcs |
| Main Body | 1 pcs |
| Trimmer | 1 pcs |
| Heater | 1 pcs |
| Protective Casing | 1 pcs |
| Stuffer | 80 pcs |
| Tool Bag | 1 pcs |
| Packaging Details | |
| Type of Package | Wooden Case |
| Number of Packages | 1 pack |
| Dimensions | 1.29 x 0.94 x 0.88 m |
| Total Volume | 1.07 m³ |
| Total Net Weight | 224 kg |
| Total Gross Weight | 272 kg |
