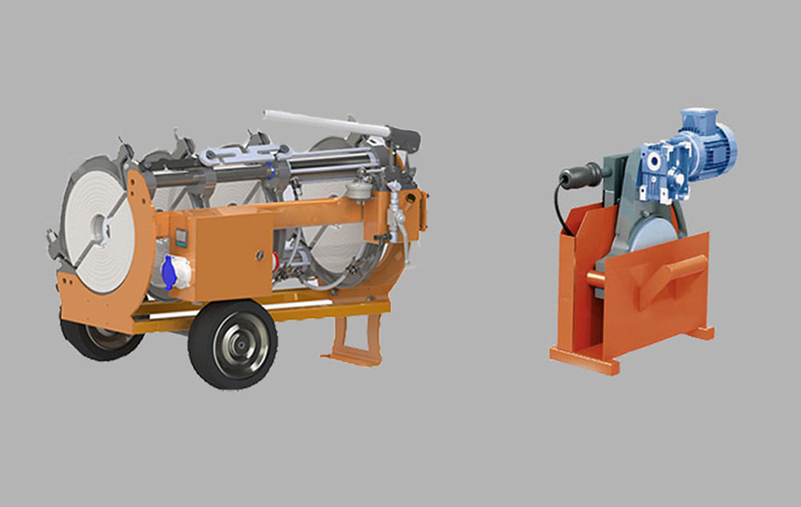

Plastic Pipe Manual Hydraulic
Butt Welding Machine

Here is the translation of the provided text:

• Used for welding PE – PP – PVDF pipes and fittings in diameters of 90 – 110 – 125 – 140 – 160 – 180 – 200 – 225 – 250 – 280 – 315 mm up to 32 Bar.
• Provides an operationally shortest setup with strong, easy, and quick welding capabilities in accordance with ISO 12176 – 1 international standards.
• Its lightweight structure allows for easy use.
• Maximum working pressure is designed as 150 Bar.
• Suitable for operation in ambient temperatures between -10°C ~ +40°C.

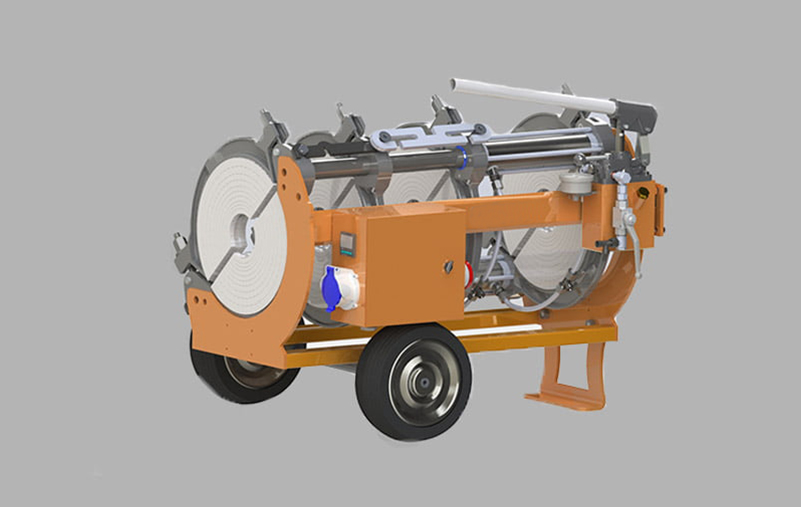

MHW315 Manual Hydraulic Butt Fusion Machine Body

The main body provides support to the plastic pipes to be welded with two movable and two fixed clamps on it, ensuring they are fixed and centered.Hydraulic pressure force is applied to the system. With two pistons on the carrying shaft, this force directs the movable clamps forward and backward, providing the necessary movement for the welding process to take place.

MHW315 Manual Hydraulic Butt Fusion Machine Trimmer

The trimmer element of the butt fusion machine performs the cleaning of the pipe ends before heating, making them ready for the heating process. The pipes are fixed and centered on the main body.The trimmer’s rotating motion is provided by the motor and reducer group attached to it. The MHW315 Manual Hydraulic Butt Fusion Machine trimmer unit creates smooth, parallel pipe surfaces without burrs.

MHW315 Manual Hydraulic Butt Fusion Machine Heater

The heater element of the butt fusion machine prepares the pipe end surfaces, which have been made smooth by the trimmer, for welding by heating them with a heating plate.The temperature setting of the heater is made via the digital thermostat on the heating plate.

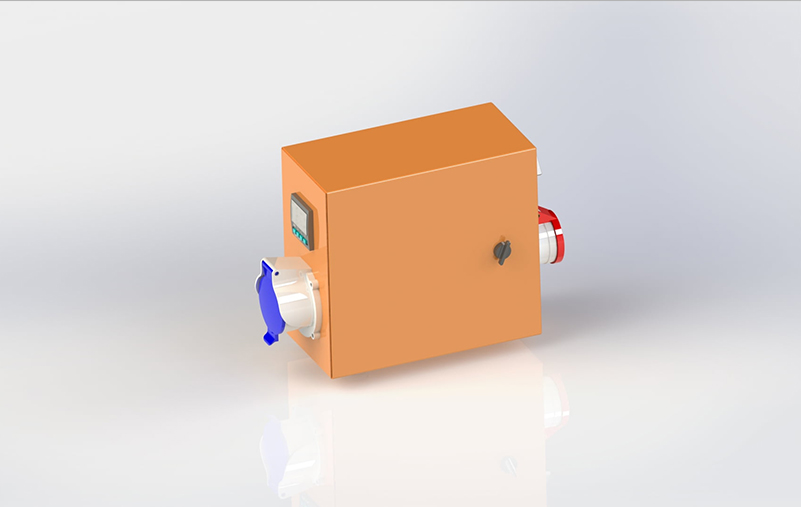

MHW315 Manual Hydraulic Butt Fusion Machine Electric Control Unit

The electric control unit provides the necessary electricity to the heater and trimmer and controls their operation.

MHW315 Manual Hydraulic Butt Fusion Machine Protective Casing

The protective casing and support box prevent heat loss from the heater and protect the trimmer and heater from external impacts (such as shocks, water, etc.).

Technical Specifications
Welding Range	Ø 90 mm – Ø 315 mm (Ø90 mm, Ø110 mm, Ø125 mm, Ø140 mm, Ø160 mm, Ø180 mm, Ø200 mm, Ø225 mm, Ø250 mm, Ø280 mm, Ø315 mm)
Pipe Types to Weld	PE – PP – PVDF
Pipe Max. Pressure	PN32
Heater Electric Power	220 V – 3.5 kW
Trimmer Electric Power	220 V – 0.75 kW
Electric System	Single Phase
Total Electricity Consumption	4.25 kW
Operating Pressure	150 Bar
Required Generator Power	9 kVA
Working Temperature	(-10°C ~ + 40°C)
Hydraulic Oil	Hydraulic 46 / 4 lt
Content
User Manual	1 pcs
Main Body	1 pcs
Trimmer	1 pcs
Heater	1 pcs
Protective Casing	1 pcs
Stuffer	80 pcs
Tool Bag	1 pcs
Packaging Details
Type of Package	Wooden Case
Number of Packages	1 pack
Dimensions	1.09 x 1.15 x 0.76
Total Volume	0.952 m³
Total Net Weight	170 kg
Total Gross Weight	245 kg
