400 Plastic Pipe Hydraulic
Butt Welding Machine

• Used for welding PE – PP – PVDF pipes and fittings with diameters of 160 – 180 – 200 – 225 – 250 – 280 – 315 – 355 – 400 mm, up to 32 Bar.
• Provides strong, easy, and fast welding with the shortest operational setup in compliance with ISO 12176 – 1 international standards.
• Lightweight design enables easy use.
• Designed for a maximum operating pressure of 150 Bar.
• Suitable for operation in ambient temperatures from -10°C to +40°C.

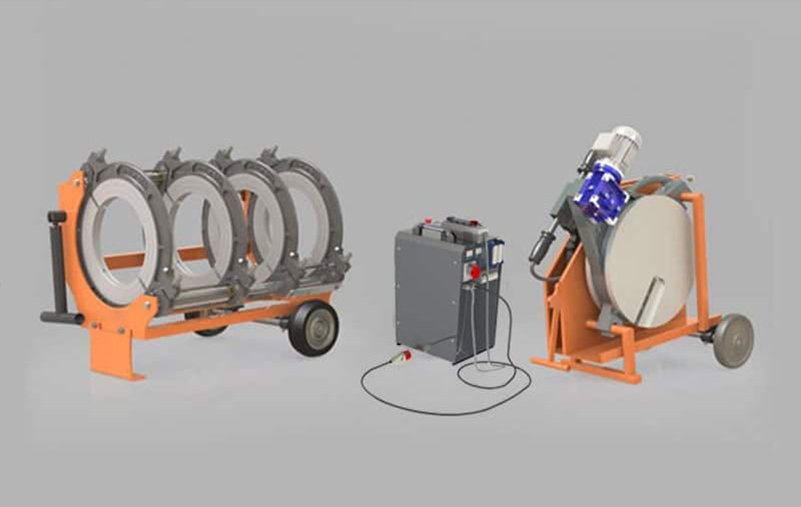

W400 Butt Fusion Machine Body

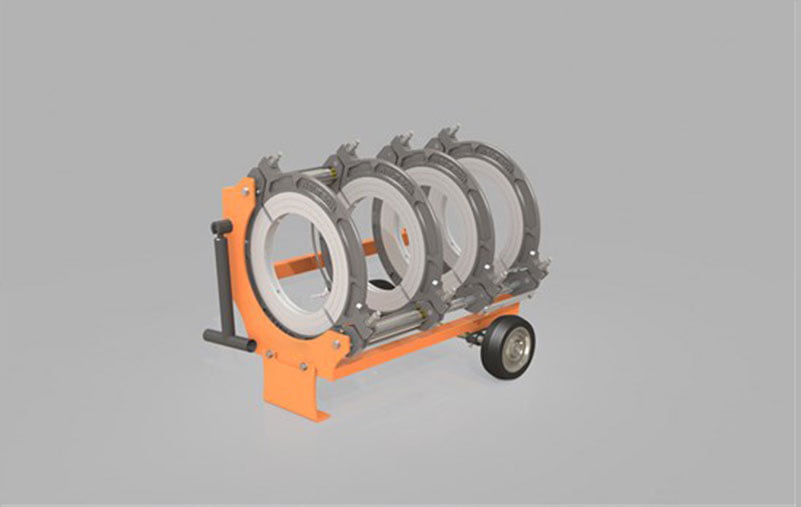

The main body supports and centers the plastic pipes to be welded with two movable and two fixed clamps.

Hydraulic pressure force is applied to the system. Two pistons on the carrier shaft move the clamps forward and backward, providing the necessary movement for welding.

W400 Butt Fusion Machine Trimmer

Equipped with two rotating wings and cutting blades on both sides, the trimmer cleans the pipe ends and prepares them for heating. It is fixed and centered on the main body before the heating process.

The trimmer’s rotation is powered by a motor and gearbox unit.

The W400 trimmer unit produces burr-free and parallel pipe surfaces.

W400 Butt Fusion Machine Heater

The heater warms the pipe ends, prepared by trimming, using a heating plate to prepare them for fusion.

The temperature setting of the heater is controlled by a digital thermostat on the heating plate.

W400 Butt Fusion Machine Hydraulic and Electric Control Unit

The electric and hydraulic control unit supplies the necessary electricity to the heater and trimmer and hydraulic pressure to the main machine. It is operated via a handheld remote.

The remote has four buttons and a switch. The buttons move the clamps forward and backward; the switch operates the trimmer.

W400 Butt Fusion Machine Protective Casing
