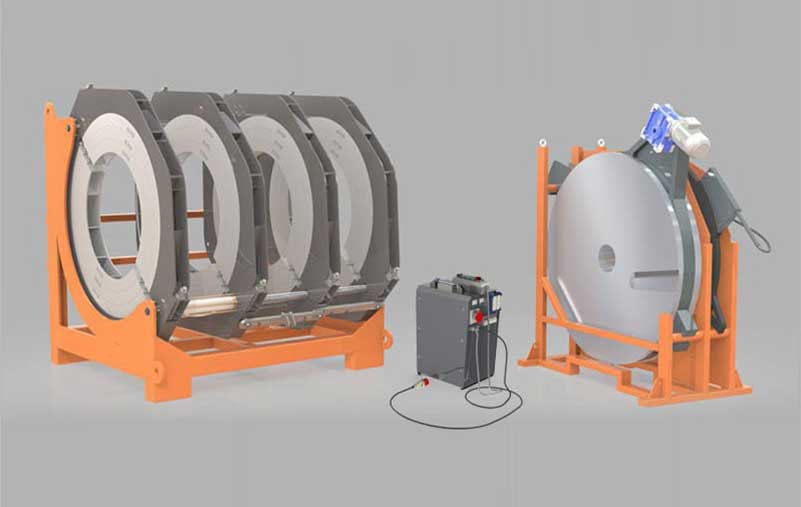

2800 Plastic Pipe Manual Hydraulic
Butt Welding Machine
BUTT WELDING MACHINES
- Used for welding PE – PP – PVDF pipes and fittings with diameters of 1800 – 2800 – 2500 – 2800 mm up to 32 Bar.
- Provides strong, easy, and fast welding with the shortest operational setup according to ISO 12176 – 1 international standards.
- Lightweight design allows easy use.
- Designed for a maximum operating pressure of 200 Bar.
- Suitable for operation in ambient temperatures from -10°C to +40°C.

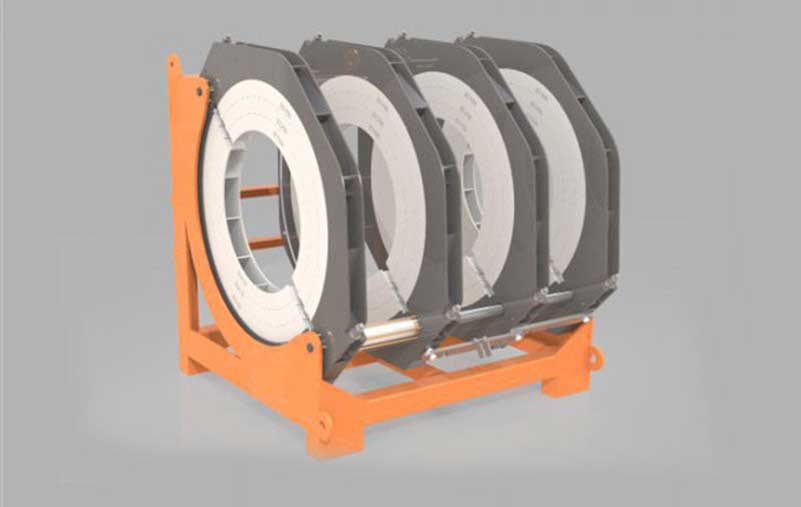

W2800 Butt Fusion Machine Body
The main body supports and centers the plastic pipes to be welded with two movable and two fixed clamps.Hydraulic pressure is applied to the system. Two pistons on the carrier shaft move the clamps forward and backward to provide the necessary movement for welding.W2800 Butt Fusion Machine Trimmer

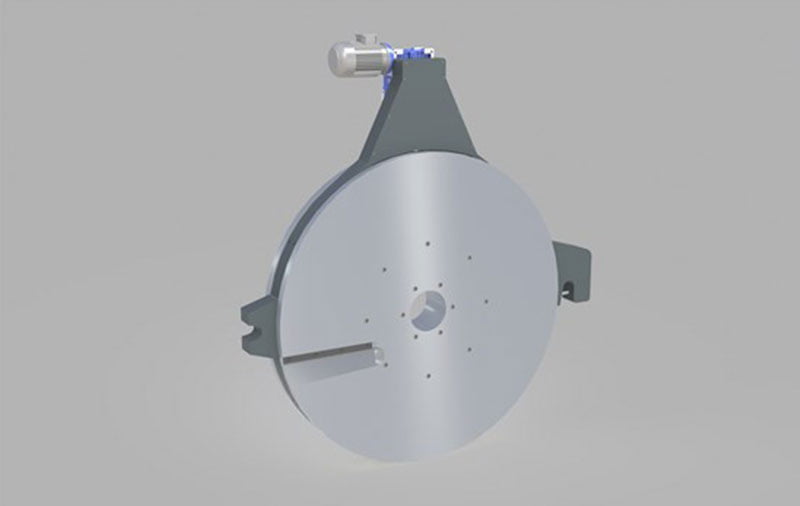

Equipped with two rotating wings and cutting blades on each side, this unit cleans and prepares the pipe ends fixed and centered on the main body before heating.The rotation of the trimmer is powered by the motor and gearbox unit.The W2800 trimmer creates burr-free, parallel pipe surfaces.W2800 Butt Fusion Machine Heater

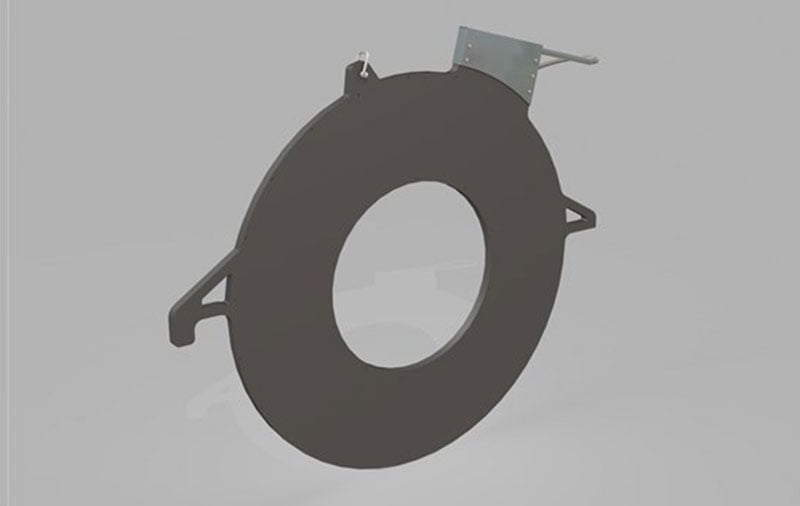

This unit heats the prepared pipe ends using a heating plate to ready them for fusion.The heater temperature is controlled digitally via a thermostat on the heating plate.W2800 Butt Fusion Machine Hydraulic and Electric Control Unit
The electric and hydraulic control unit supplies electricity to the heater and trimmer, and hydraulic pressure to the main machine.It is operated by a handheld remote control with four buttons and a switch. Buttons move the clamps forward and backward, and the switch operates the trimmer.| Technical Specifications | |
|---|---|
| Welding Range | Ø 1600 mm – Ø 2800 mm (Ø1800 mm, Ø2000 mm, Ø2500 mm, Ø2800 mm) |
| Pipe Types to Weld | PE – PP – PVDF |
| Pipe Max. Pressure | PN32 |
| Heater Electric Power | 380 V – 40 kW |
| Trimmer Electric Power | 380 V – 7.5 kW |
| Power of Hydraulic Unit | 380 V – 4 kW |
| Electric System | Three-phase |
| Total Electricity Consumption | 51.5 kW |
| Operating Pressure | 200 Bar |
| Required Generator Power | 80 kVA |
| Working Temperature | (-10°C ~ +40°C) |
| Hydraulic Oil | Hydraulic 46 / 6 liters |
| Content | |
| User Manual | 1 pcs |
| Main Body | 1 pcs |
| Trimmer | 1 pcs |
| Heater | 1 pcs |
| Protective Casing | 1 pcs |
| Stuffer | 6 pcs |
| Tool Bag | 1 pcs |
| Packaging Details | |
| Type of Package | Open-Stretch |
| Number of Packages | 3 packs |
| Dimensions | 2.55 x 2.60 x 2.60 m |
| 1.50 x 2.40 x 2.85 m | |
| Total Volume | 27.95 m³ |
| Total Net Weight | 5,480 kg |
| Total Gross Weight | 5,500 kg |
